9300 & 9300P filing series | product specification
Cold rolled steel storage units including lateral files, personal storage towers, pedestals, storage cabinets, multi-stor cabinets and exhibit cabinets.
Features
- Steel storage products

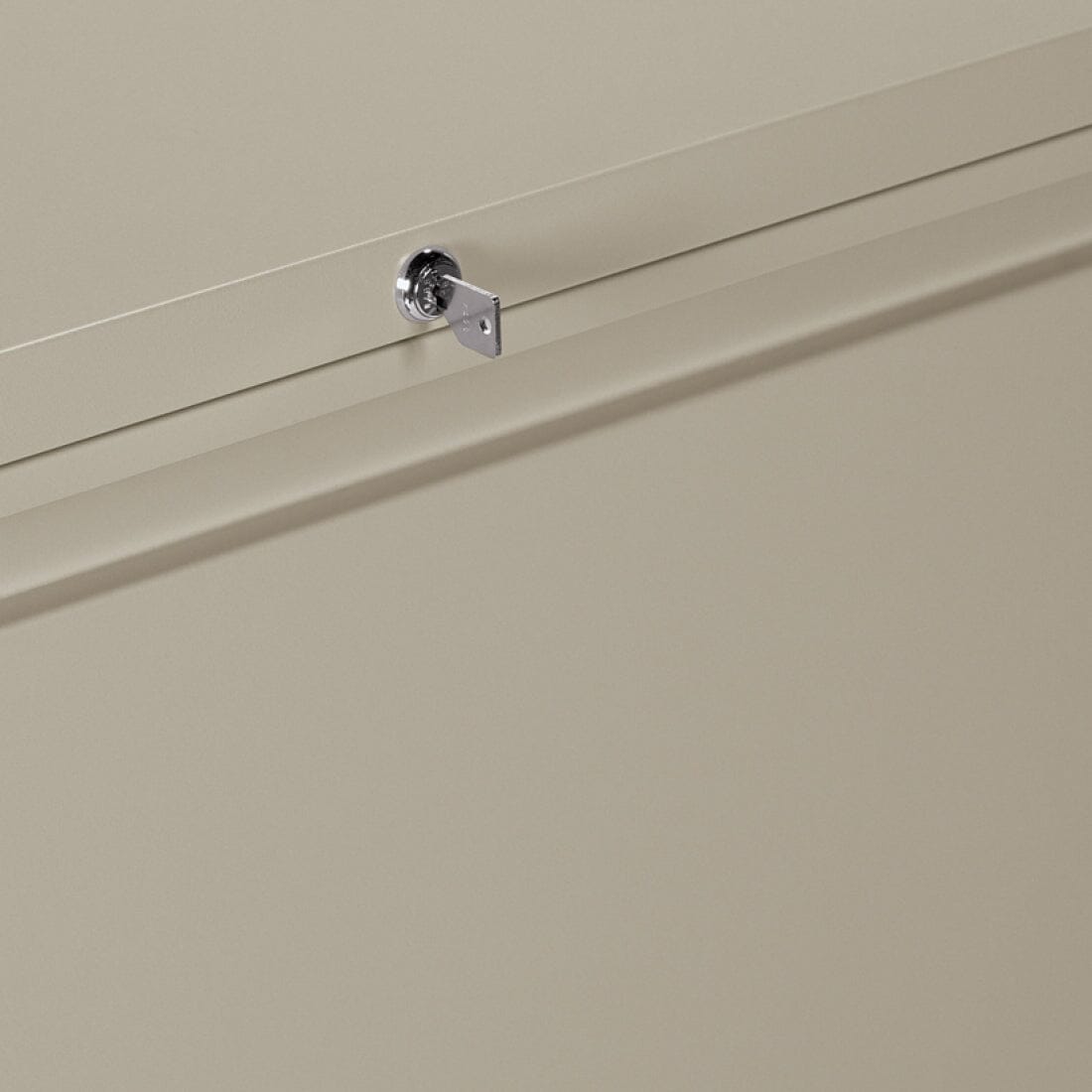

- Locks are included as standard

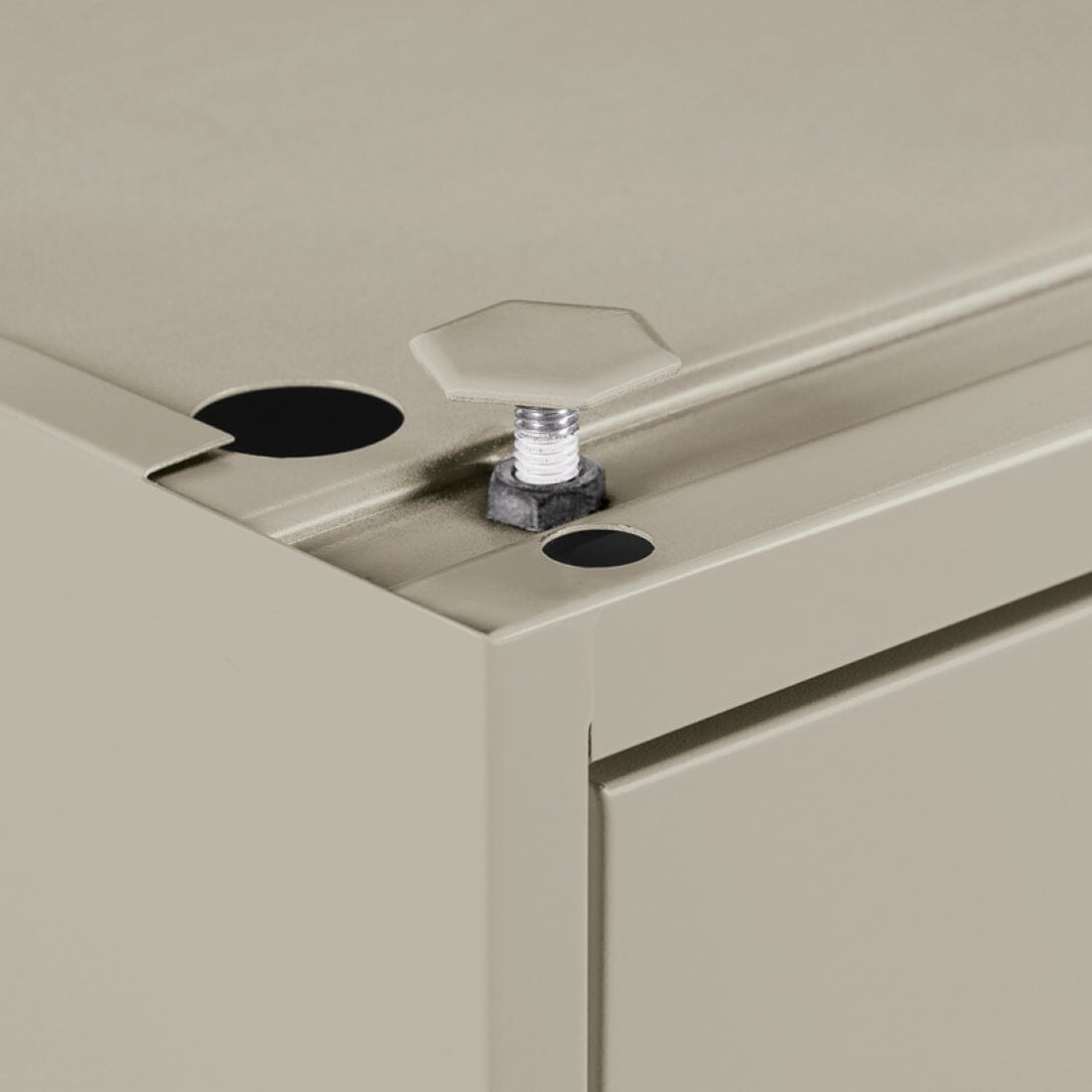

- Standard with leveling glides (except mobile pedestals)

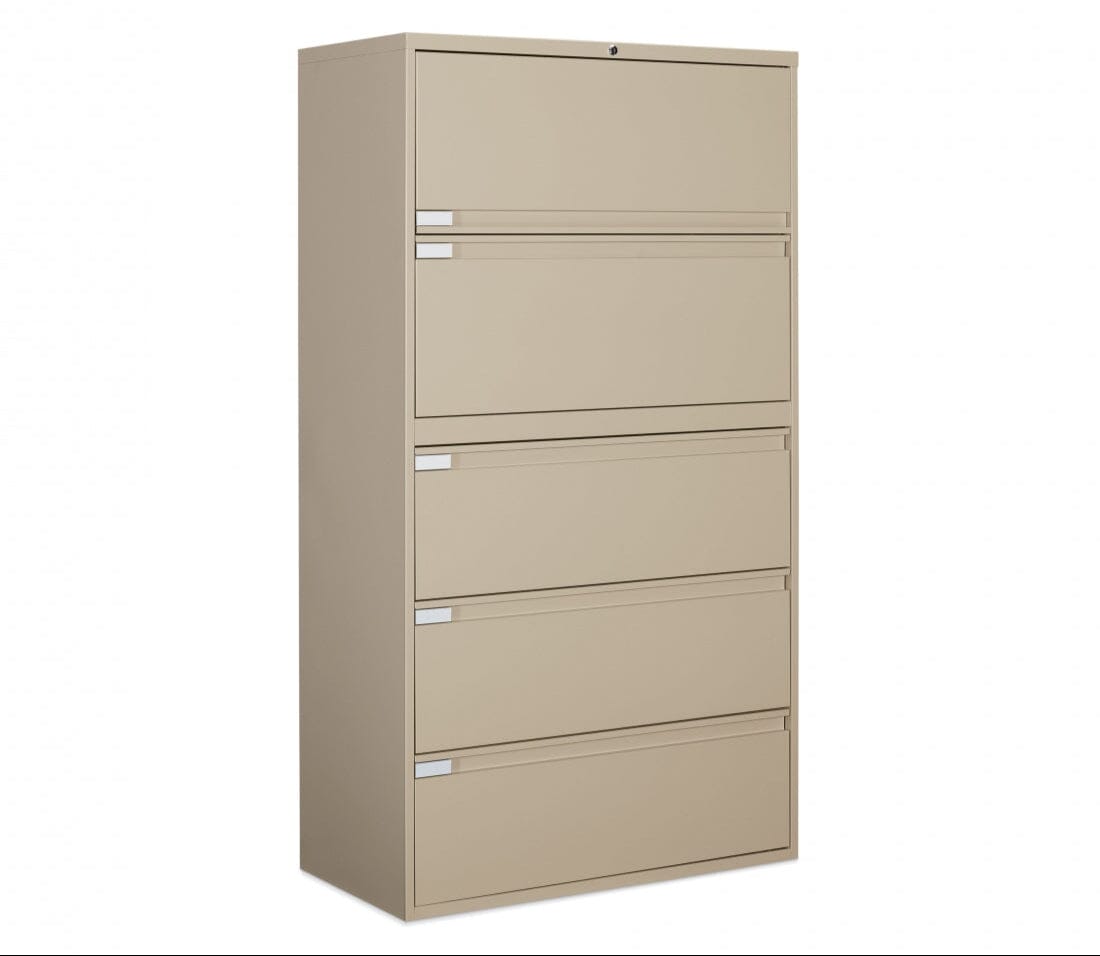

Lateral File Cabinets

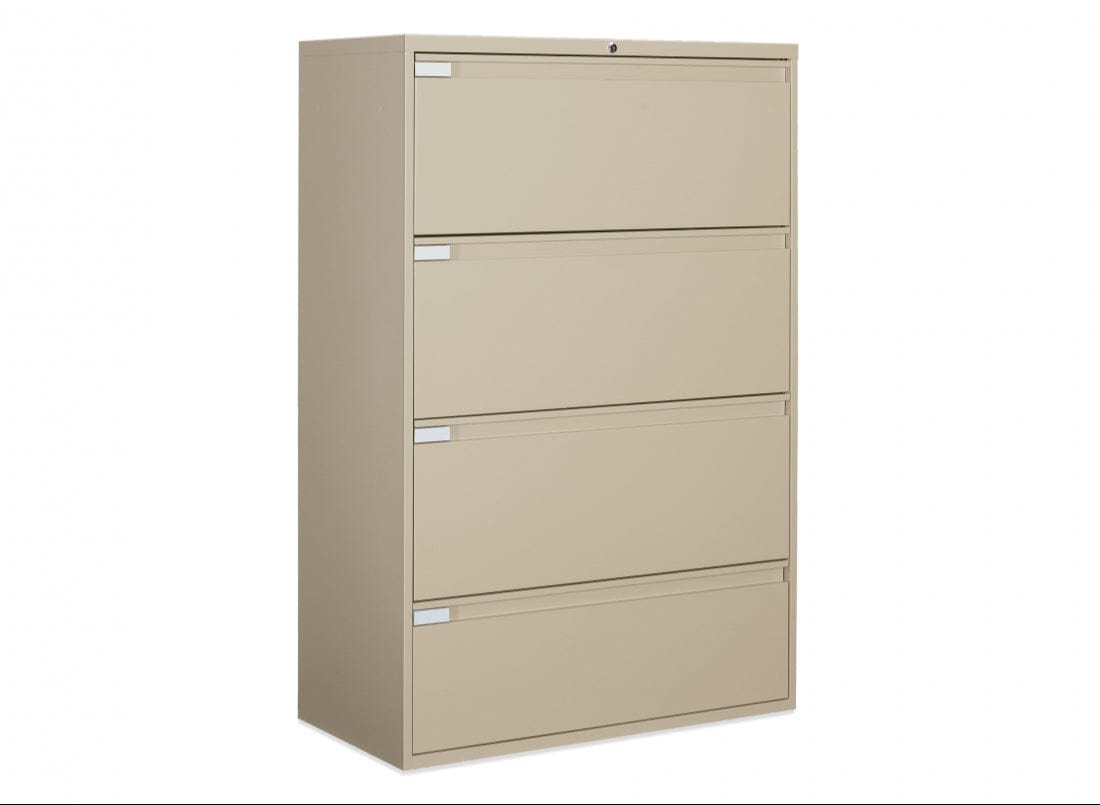

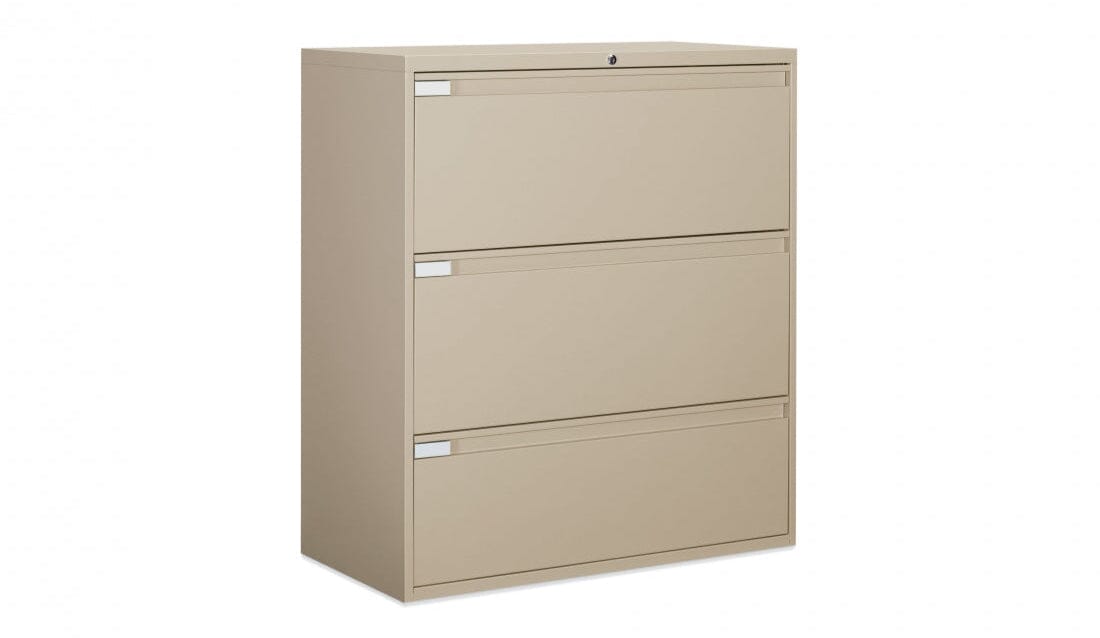

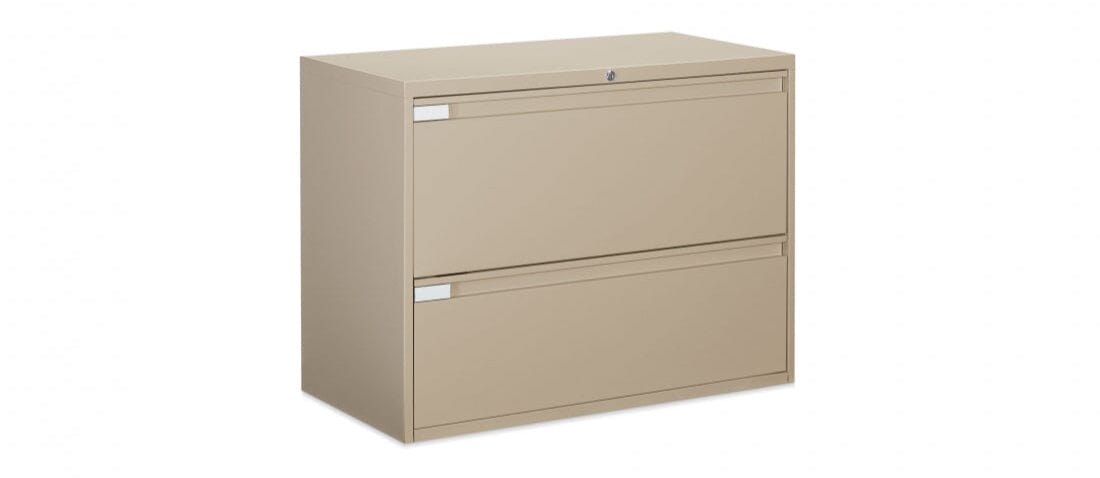

- Two, three, four and five drawer configurations available:
- All fixed front drawers
- Receding doors with roll-out shelves. Bottom drawer on these models will always be a fixed front drawer
- Both drawer sizes can be configured for storing letter or legal size files using front-to-back or side-to-side hanging file bars

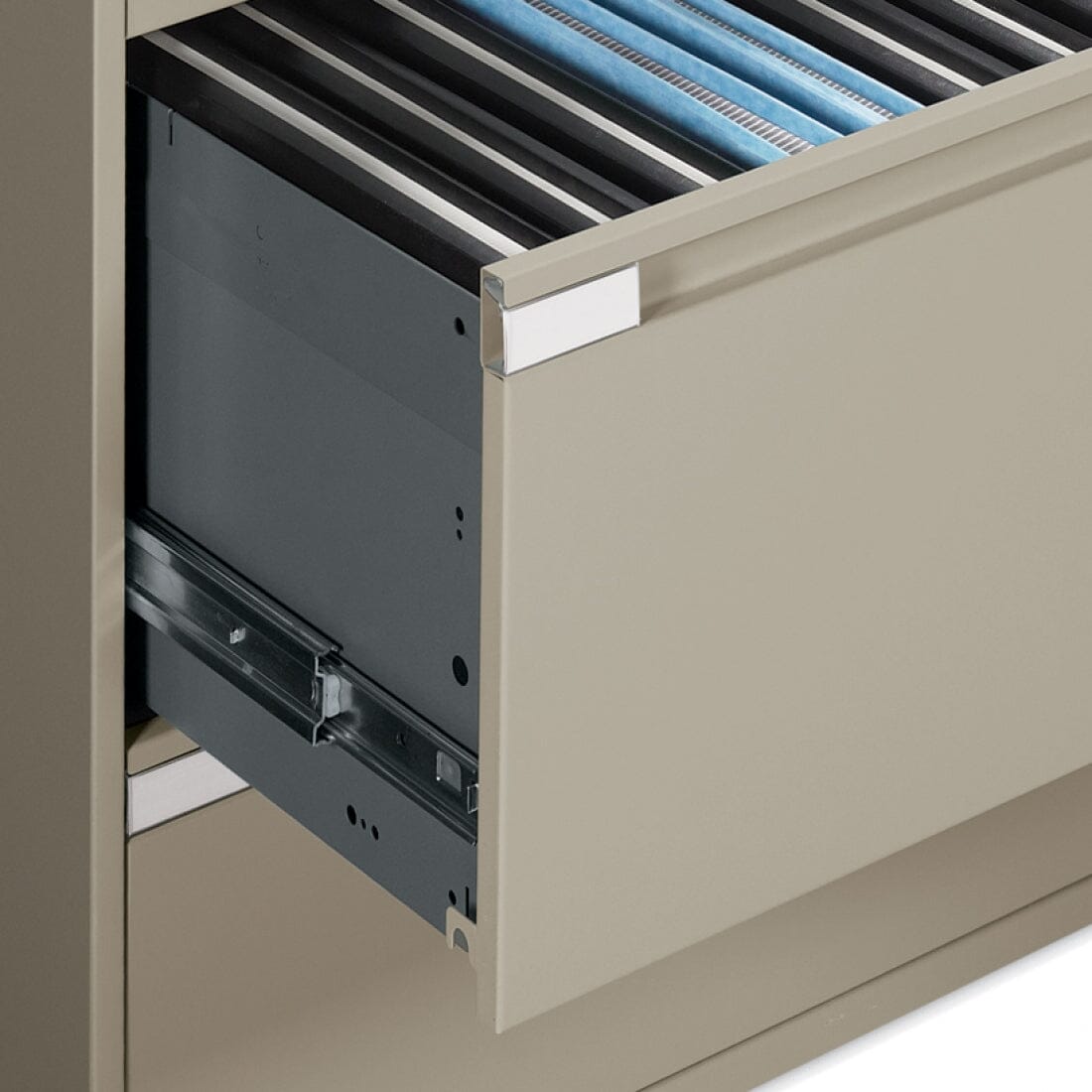

- Side-to-side hanging file bars are included
- Interlocking system prevents more than one drawer to be opened at once
MODELS: 93##-#F1H, 93##-#R1H

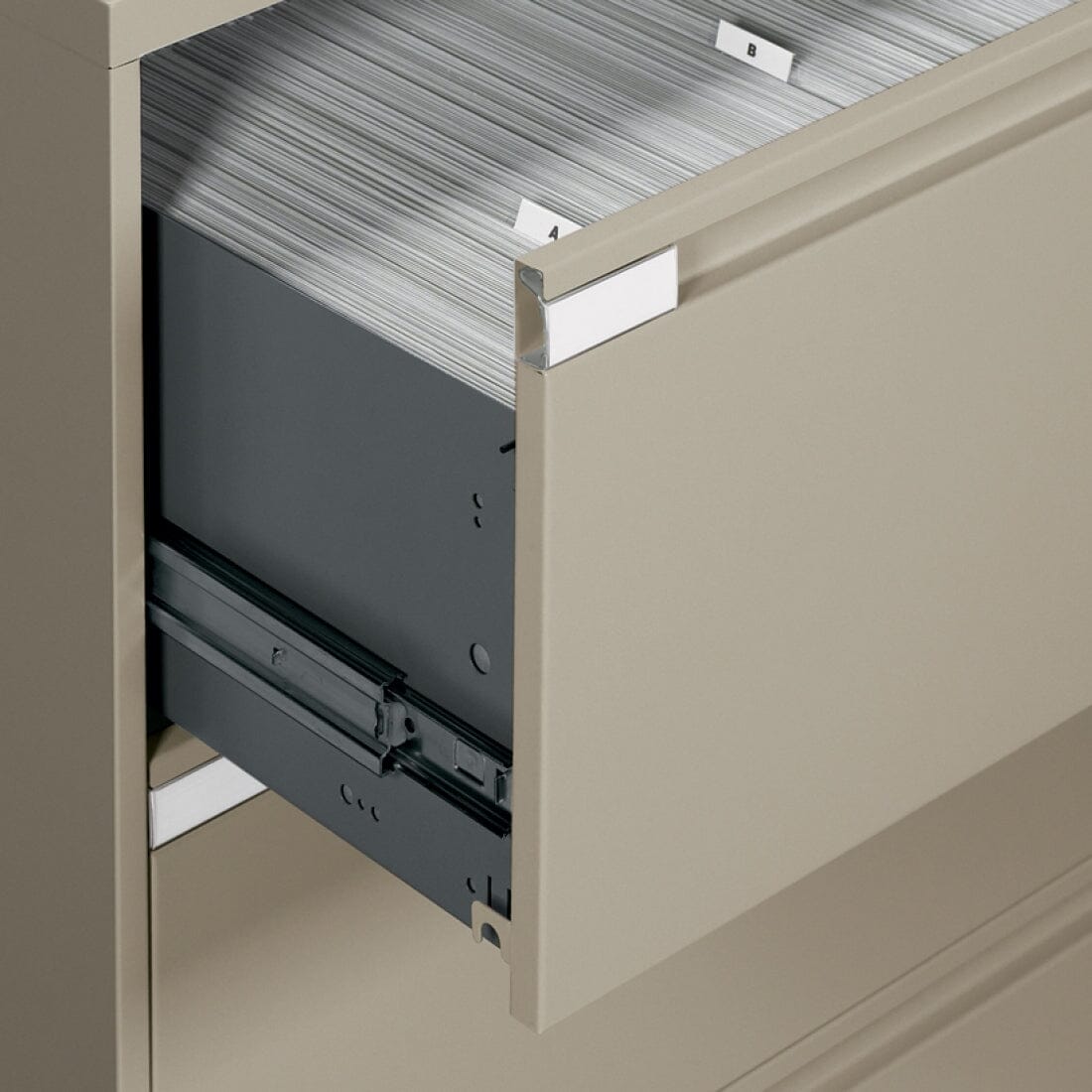

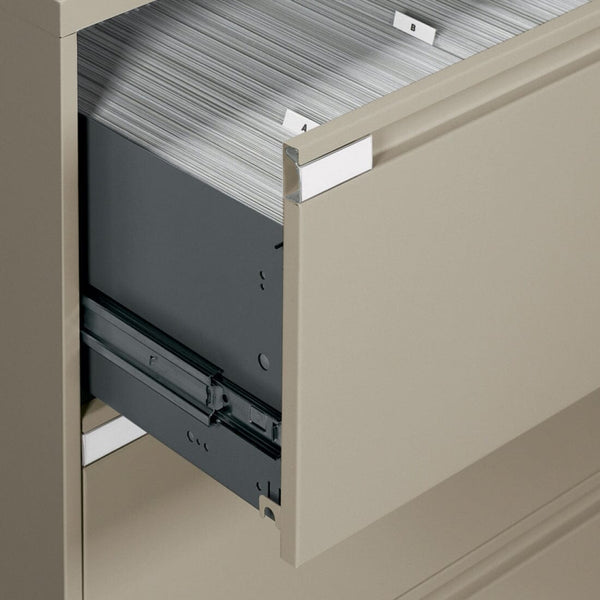

- 9300 files have an integrated center pull on each drawer with label holder
MODELS: 93##P#F1H, 93##P#R1H

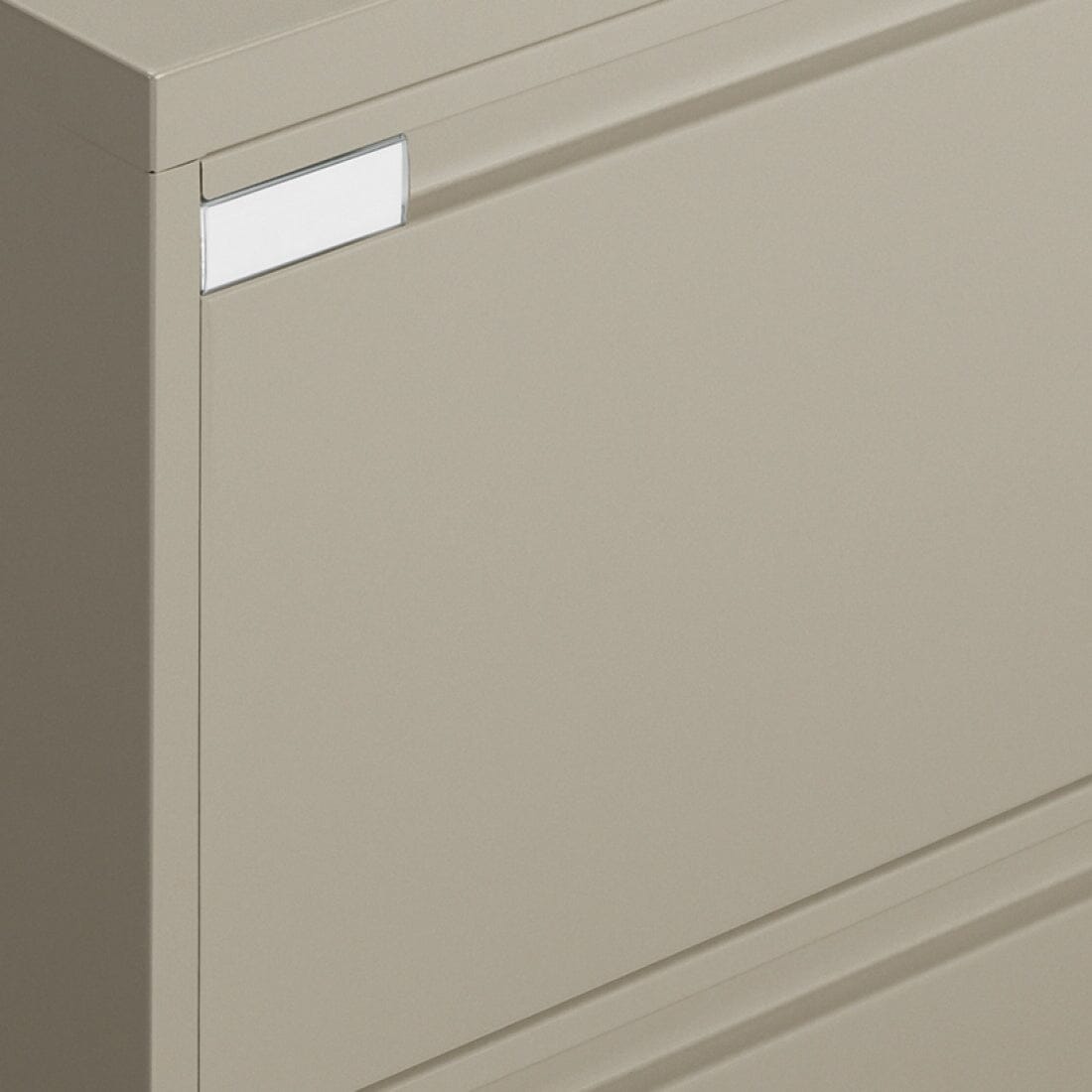

- 9300 Plus files have full width pulls
Series Options
- 25 standard paint finishes available. Five textured paint finishes available
- Locks can be keyed alike or given specific keying, on request
- Additional extra keys are available (sets of two)
Lateral file accessories are available:
- Side-to-side hanging file bars
- Front-to-back hanging file bars (for fixed front drawers)

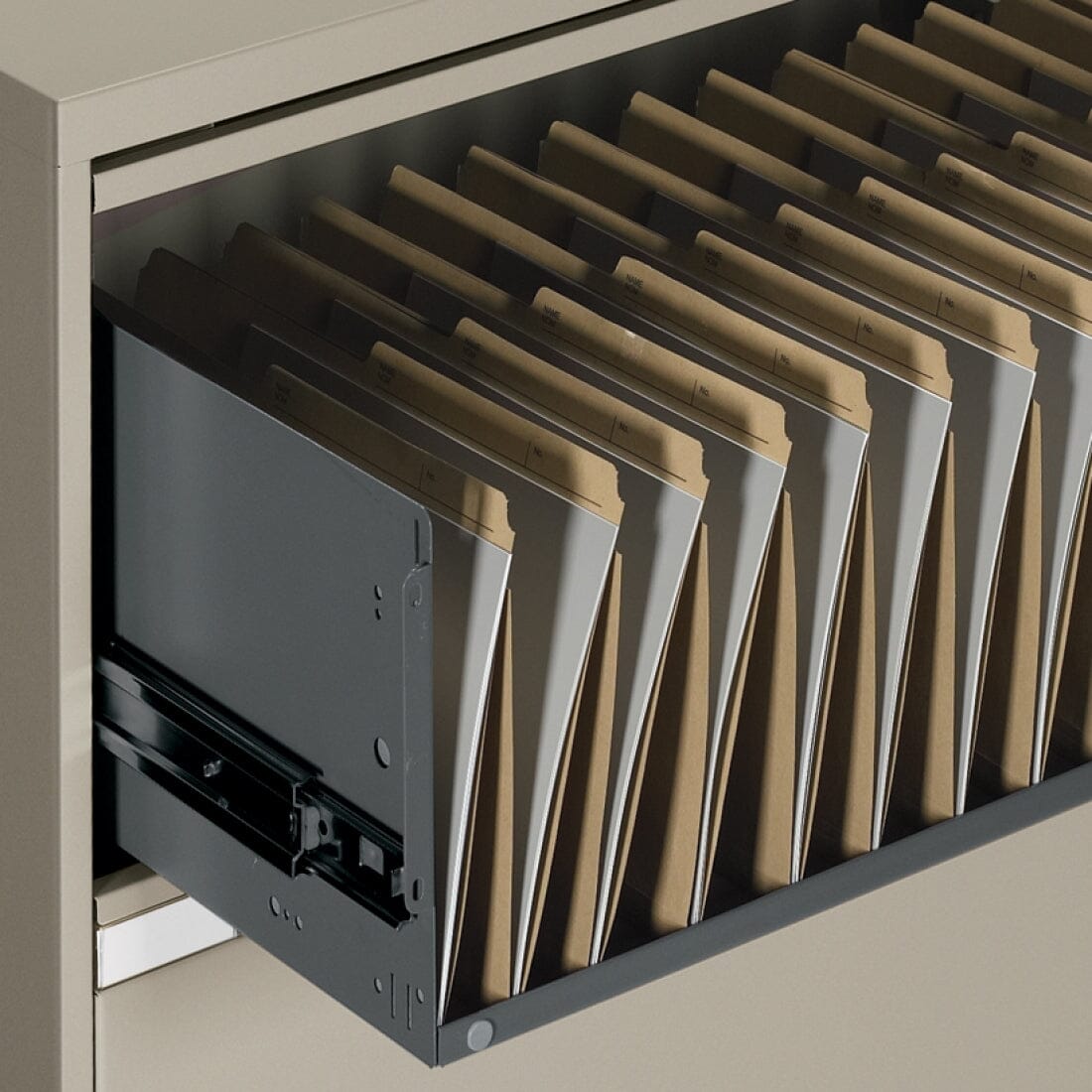

- Plate dividers for end tab filing

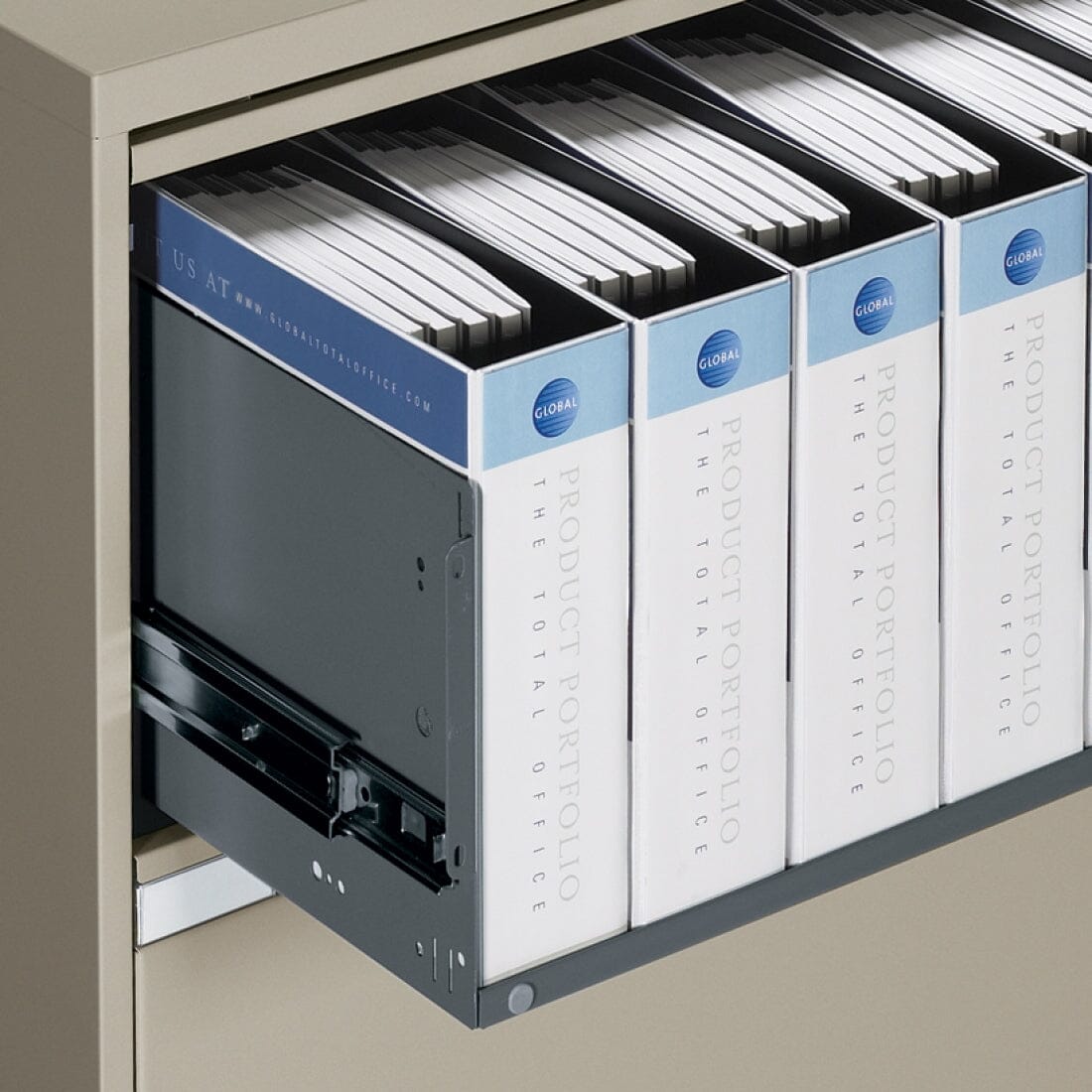

- Side adapters raise the sides of binder height drawers to accommodate EDP "2" point suspension printout style binders
- Additional adjustable shelves are available for some models of storage cabinet (sold separately)
- Laminate tops are available for lateral file and storage cabinets (sold separately)
Laterals and Storage - Thickness of Steel
- Tops and sides: 20 gauge
- Backs: 20 gauge
- Bases: 18 gauge
- Frames: 22 gauge
- Case top stiffener (laterals): 20 gauge
- Lock bar: 12 gauge
- Drawer fronts: 22 gauge
- Drawer body: 19 gauge
- Drawer sides: 18 gauge
- Drawer front stiffener: 22 gauge
- Doors: 24 gauge
- Door stiffeners: 24 gauge
- Shelves: 22 gauge
- Shelf strip: 24 gauge
MODELS: 9336-2_1H, 93362_1H, 9342-2_1H, 93422_1H
- Extra top stiffener on wide two drawer files: 16 gauge
Warranty
Environmental
- View Environmental Data Sheets online.
Awards/Certifications
- Meets or exceeds all applicable BIFMA standards for safety and durability
- Manufactured in ISO 9001 and 14001 certified facilities
Please visit globalfurnituregroup.com for additional product information including industry and environmental certifications.
