Features

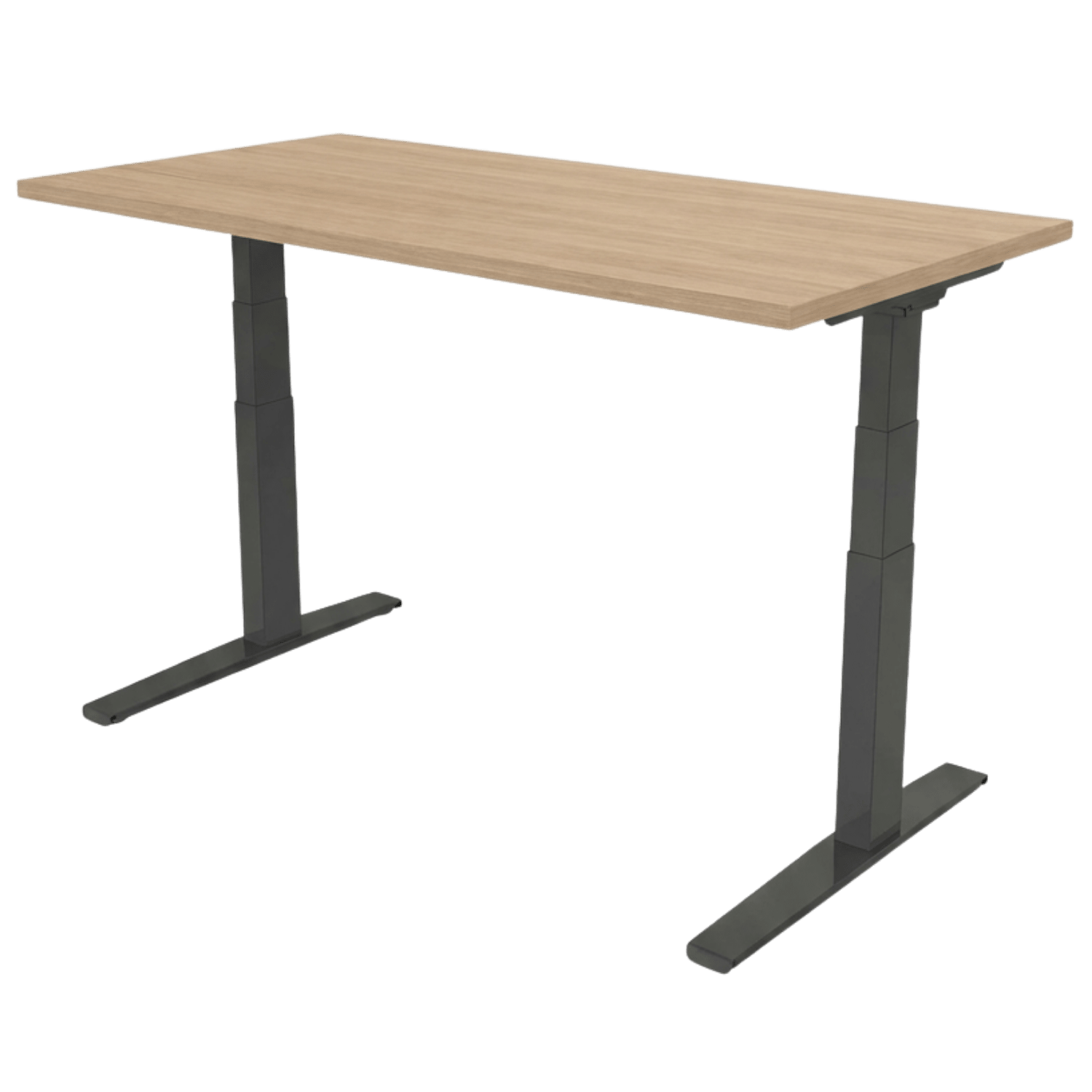

While supporting a broad range of worksurface weights and an adjustable cross channel, this table base can adapt over time with the changing technology and work tool needs of the user.
Connect And Lock Assembly
Frame and column connect and lock for quick and easy assembly.
Lifetime Warranty
Designed to be reconfigurable and adaptable backed by a lifetime warranty.
Adjustment Speed
1.4”/second ensures smooth and efficient transitions between sitting and standing positions, contributing to a more ergonomic and responsive workspace experience

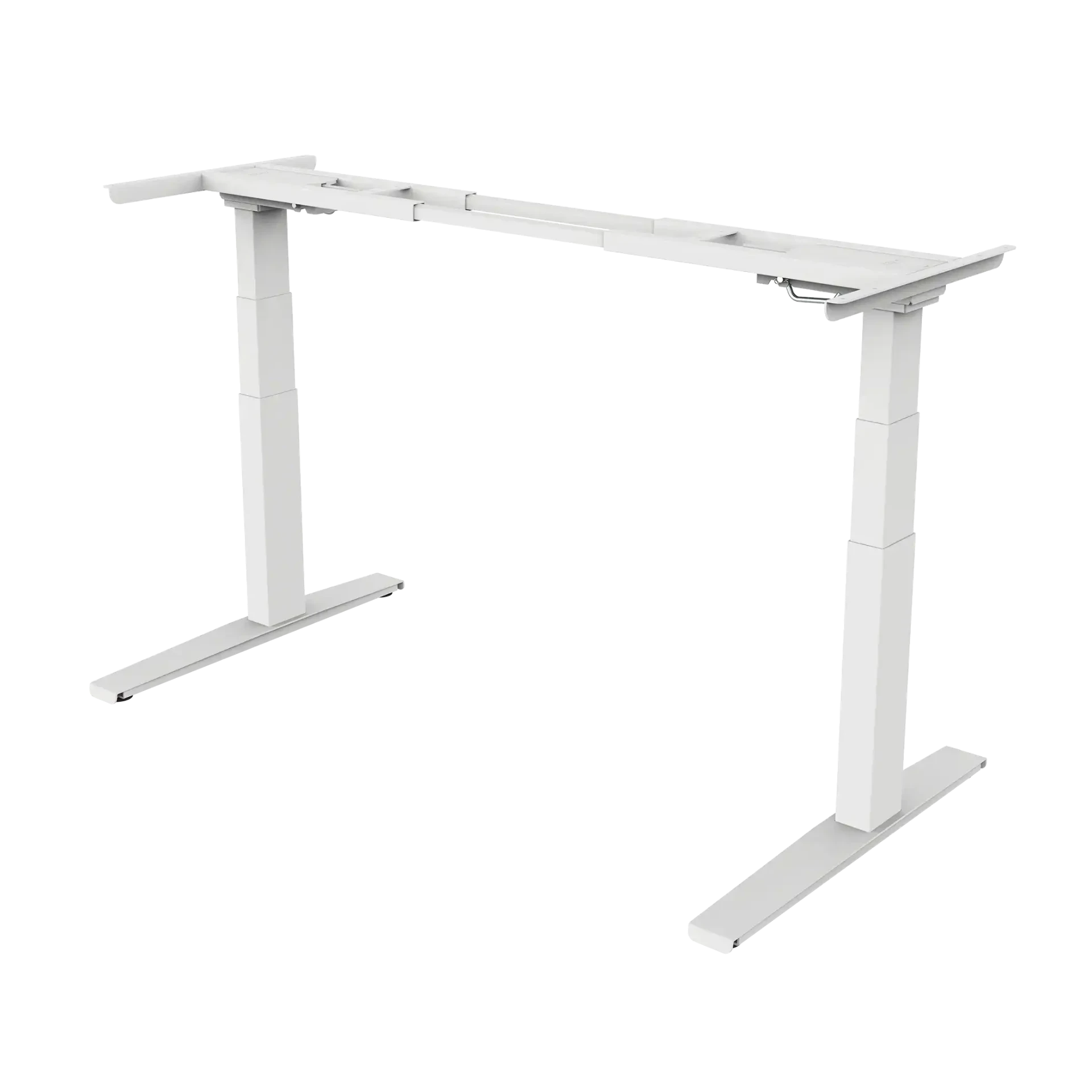

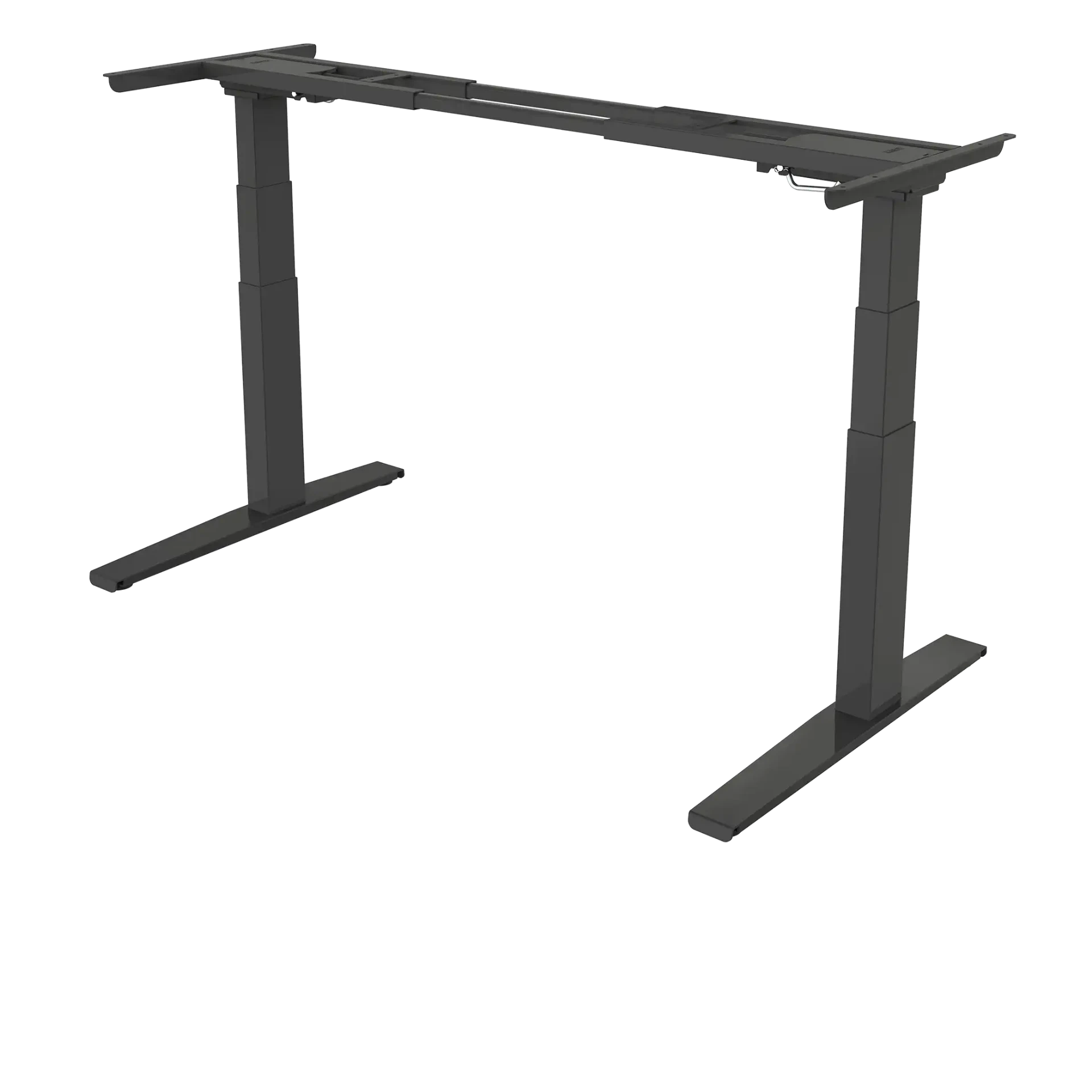

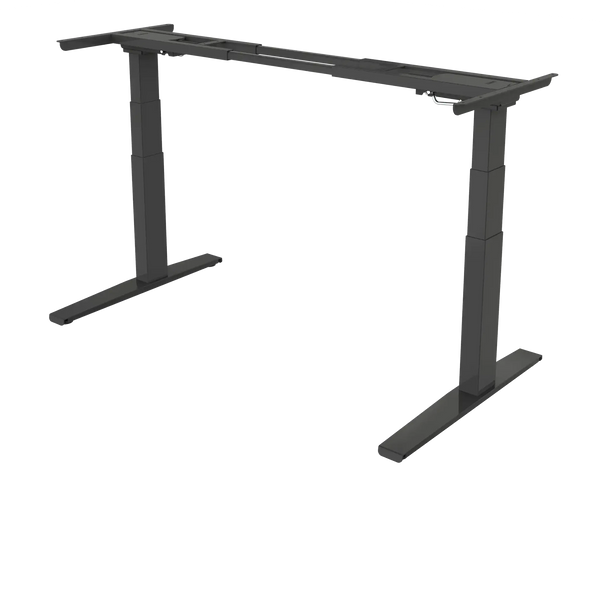

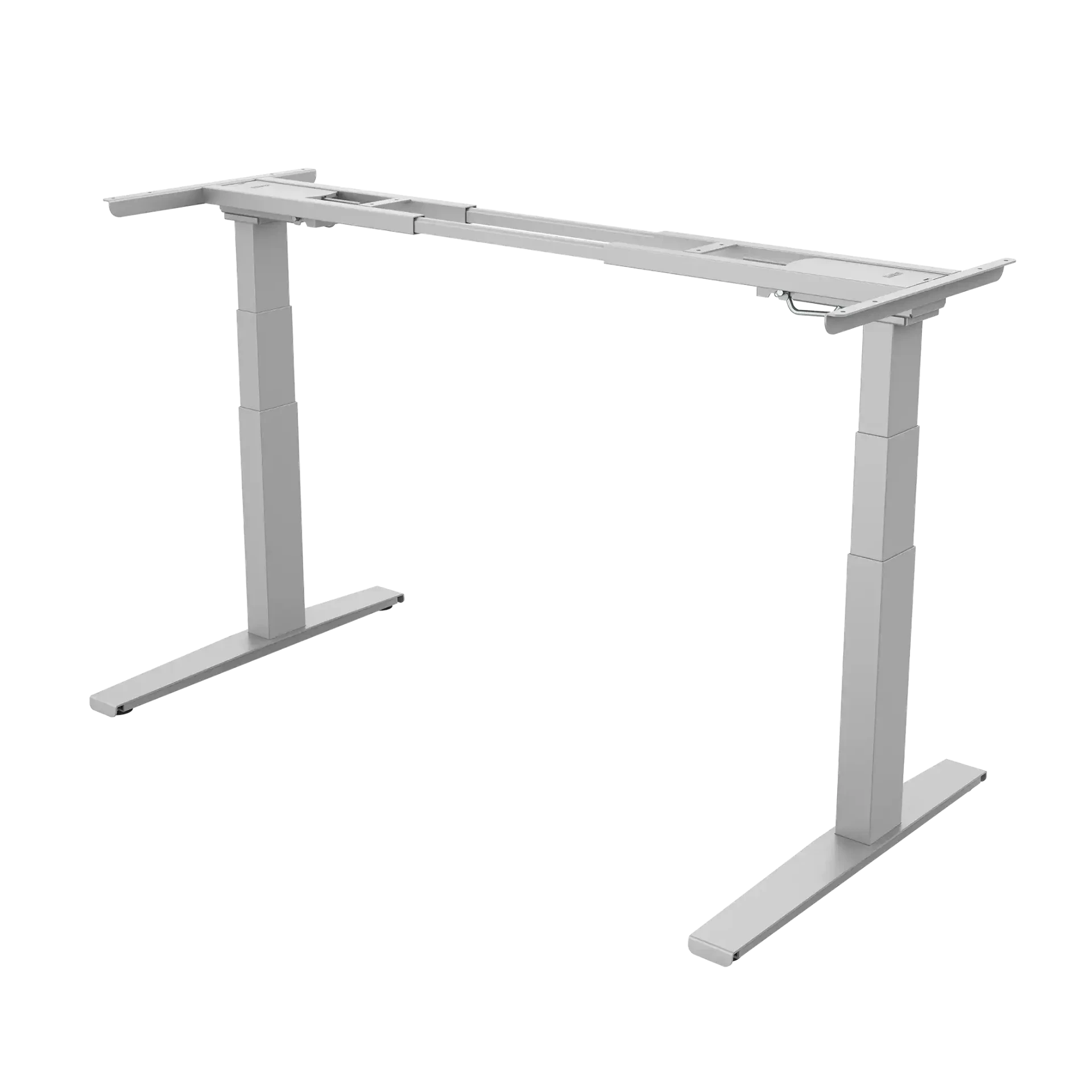

Adjustable Width Frame
Accommodates a wide range of work surface sizes, allowing customization from compact desks to expansive workstations.
Safety Feature
Gyro sensor technology detects obstructions during height adjustment, preventing damage and ensuring user safety.

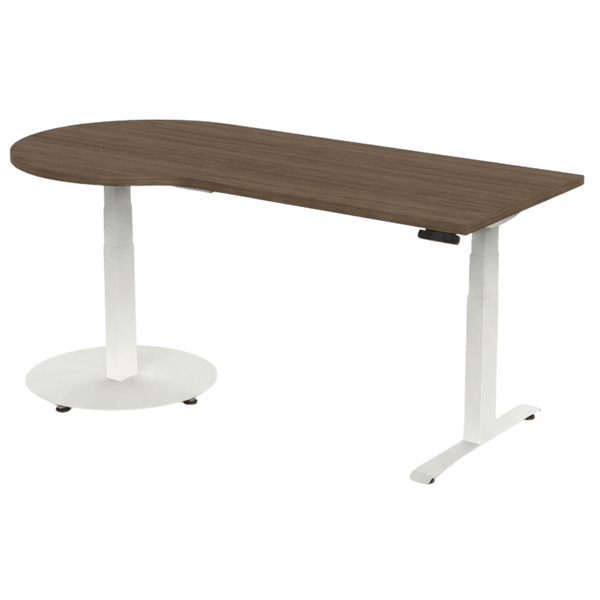

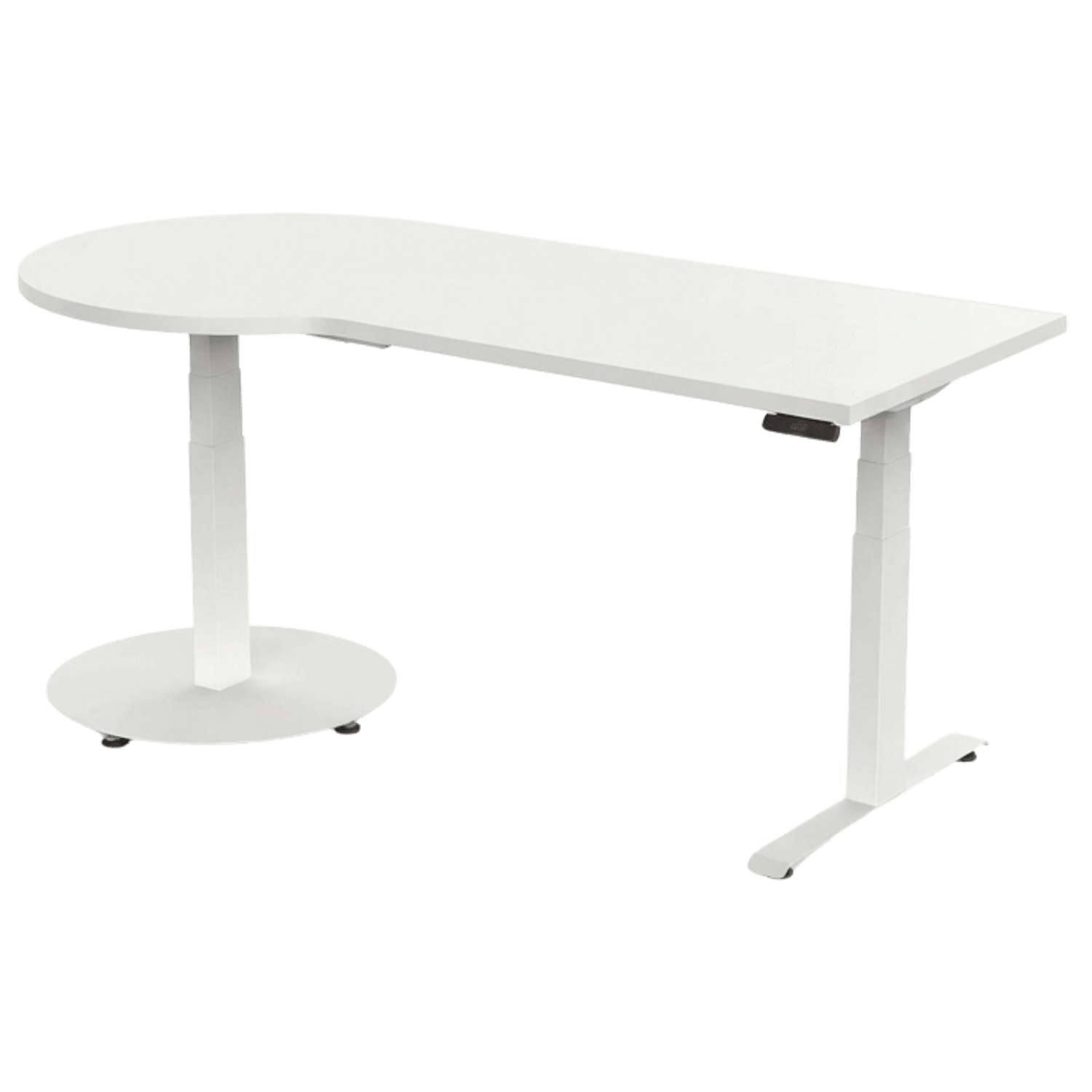

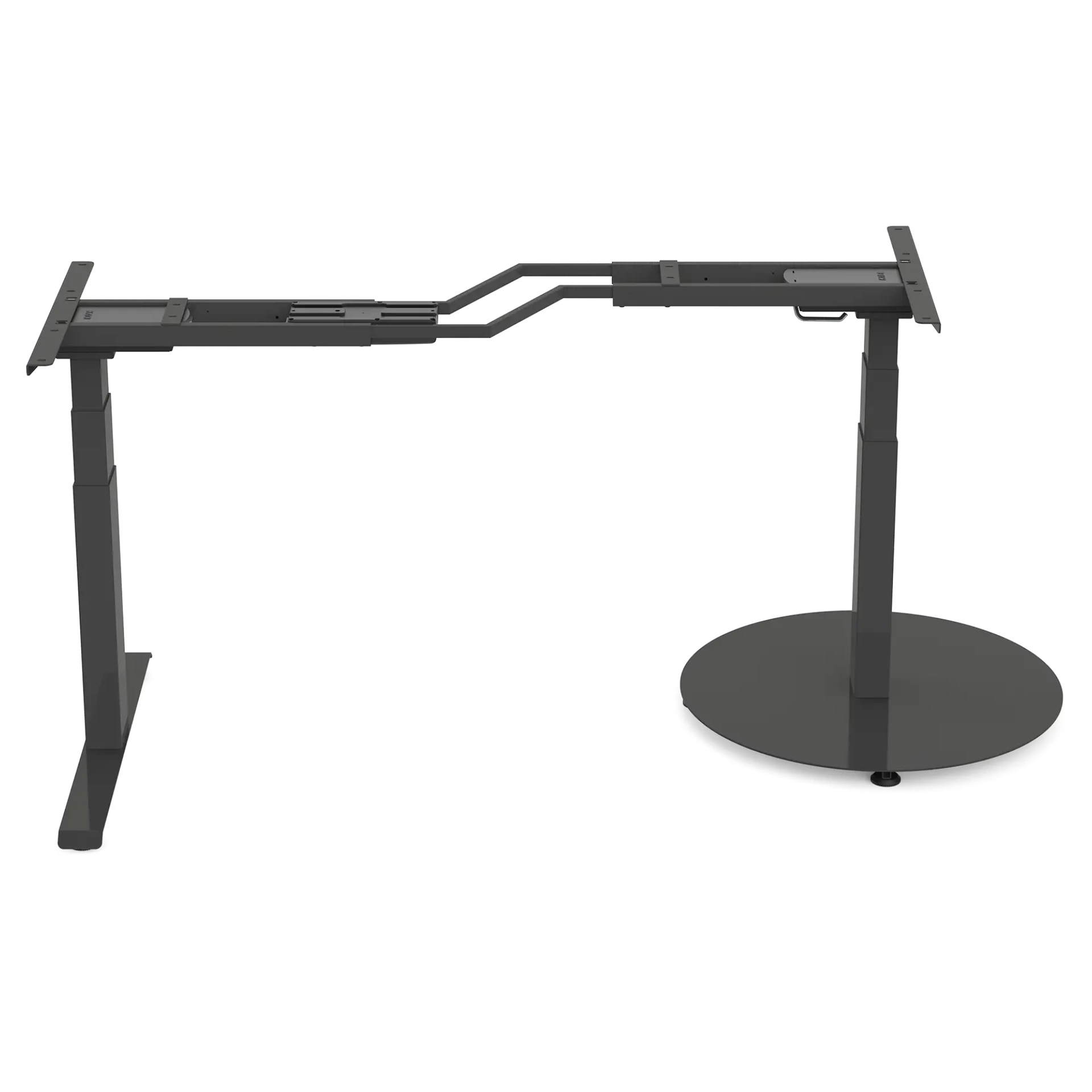

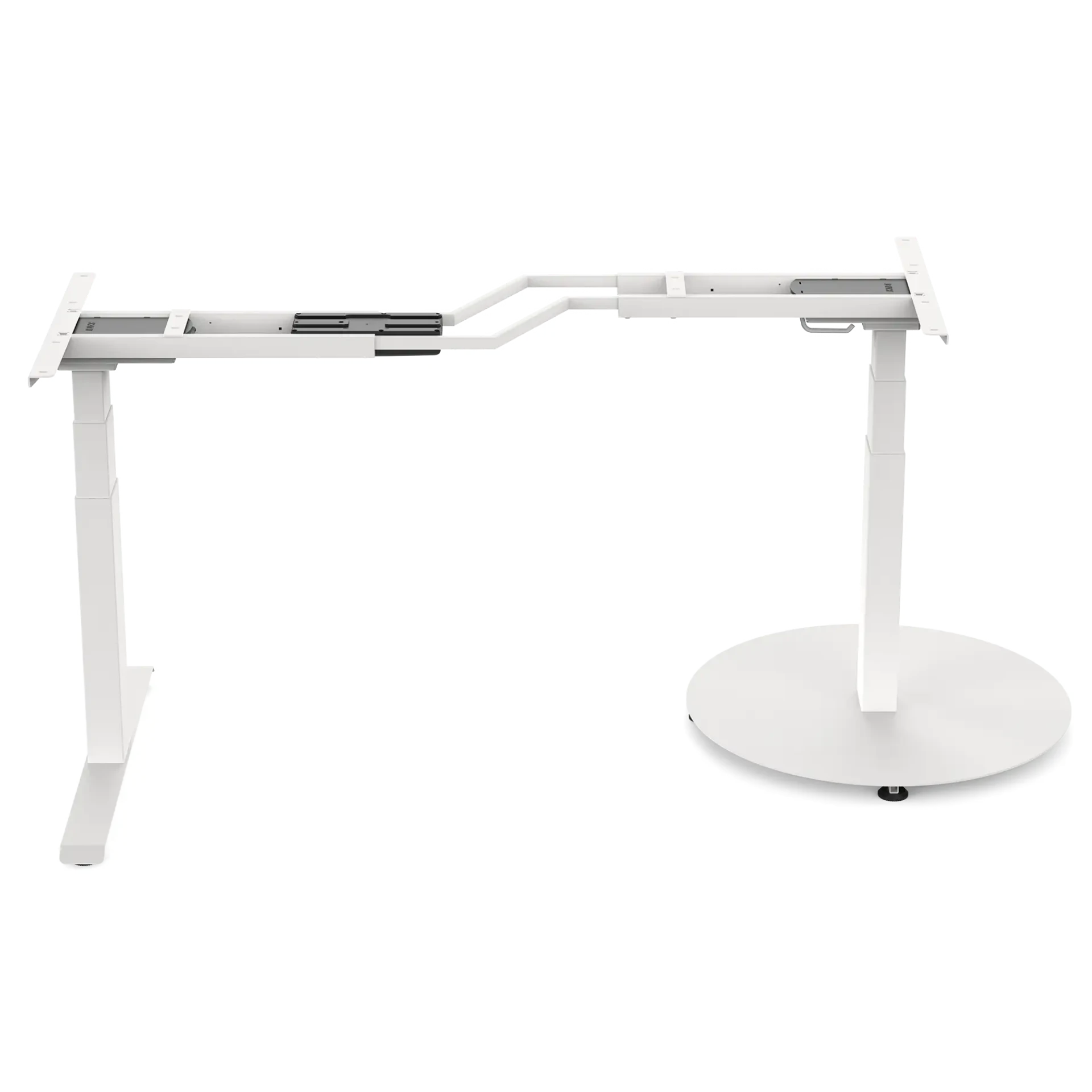

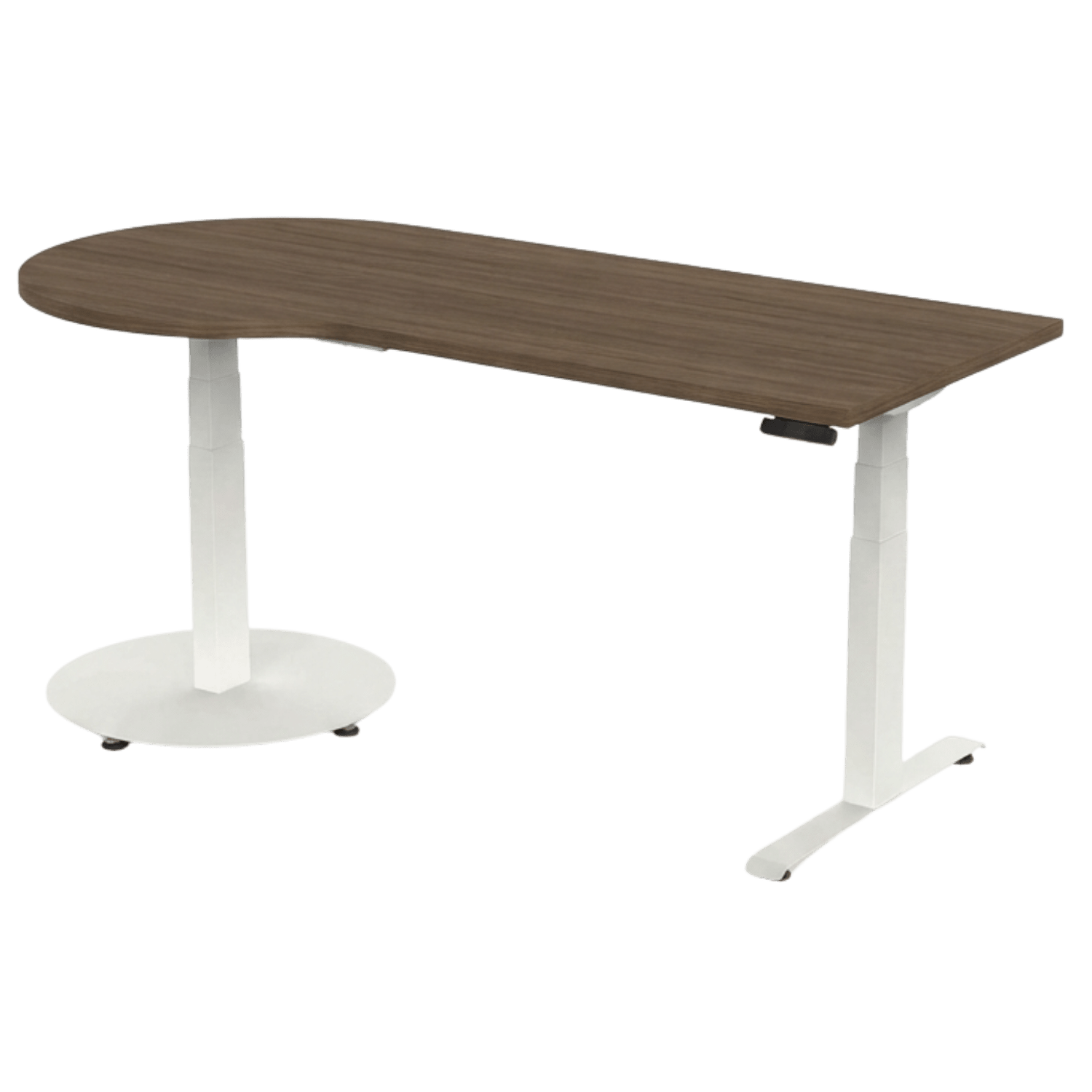

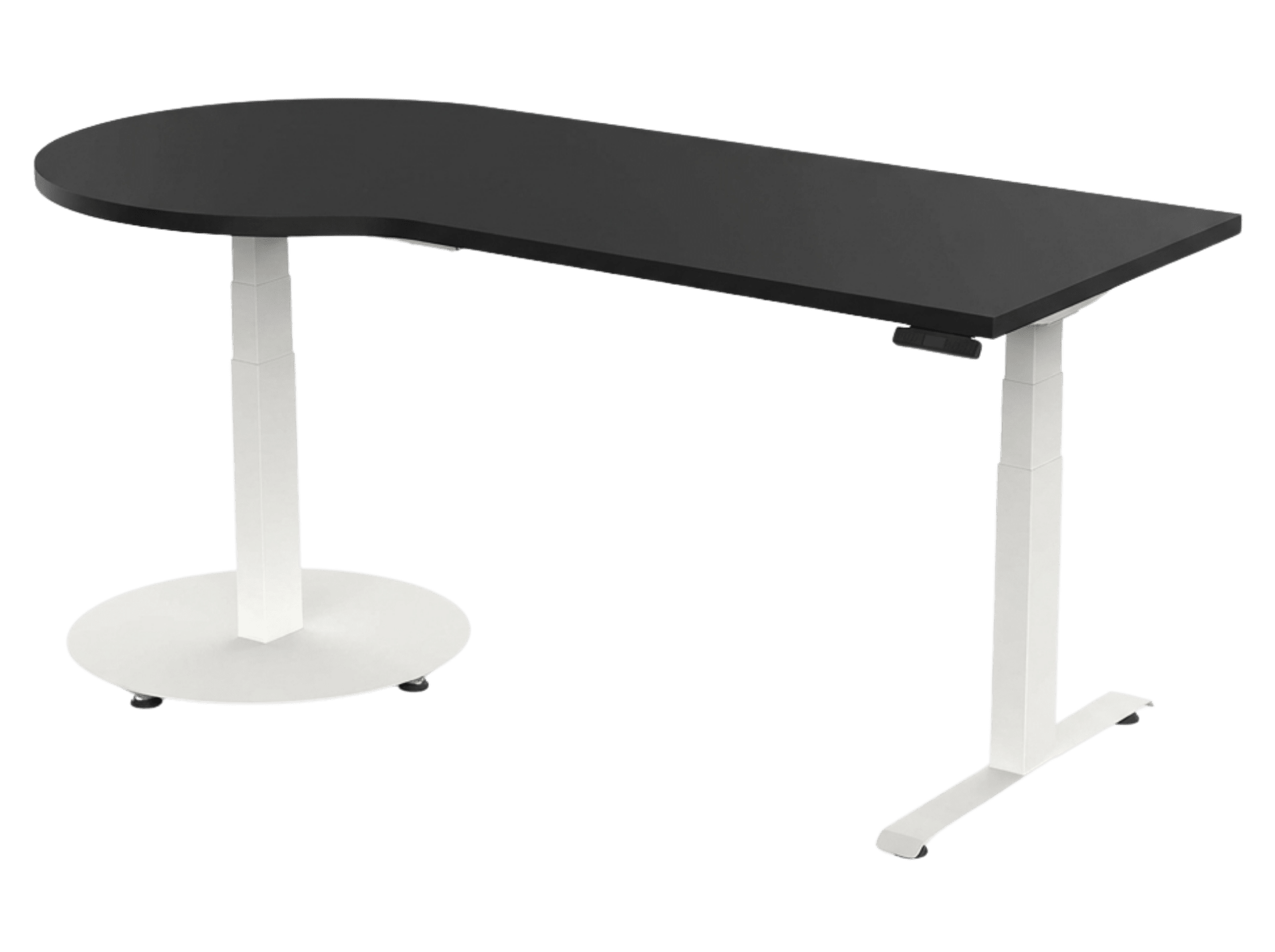

Disc Base Option
Provides unique support for P-Top or D-top configurations, combining a T-foot and disc foot for enhanced stability and design flexibility.
Finish Options
Neo Walnut
Beigewood
Light Grey
Black
Designer White
Black
White
Silver

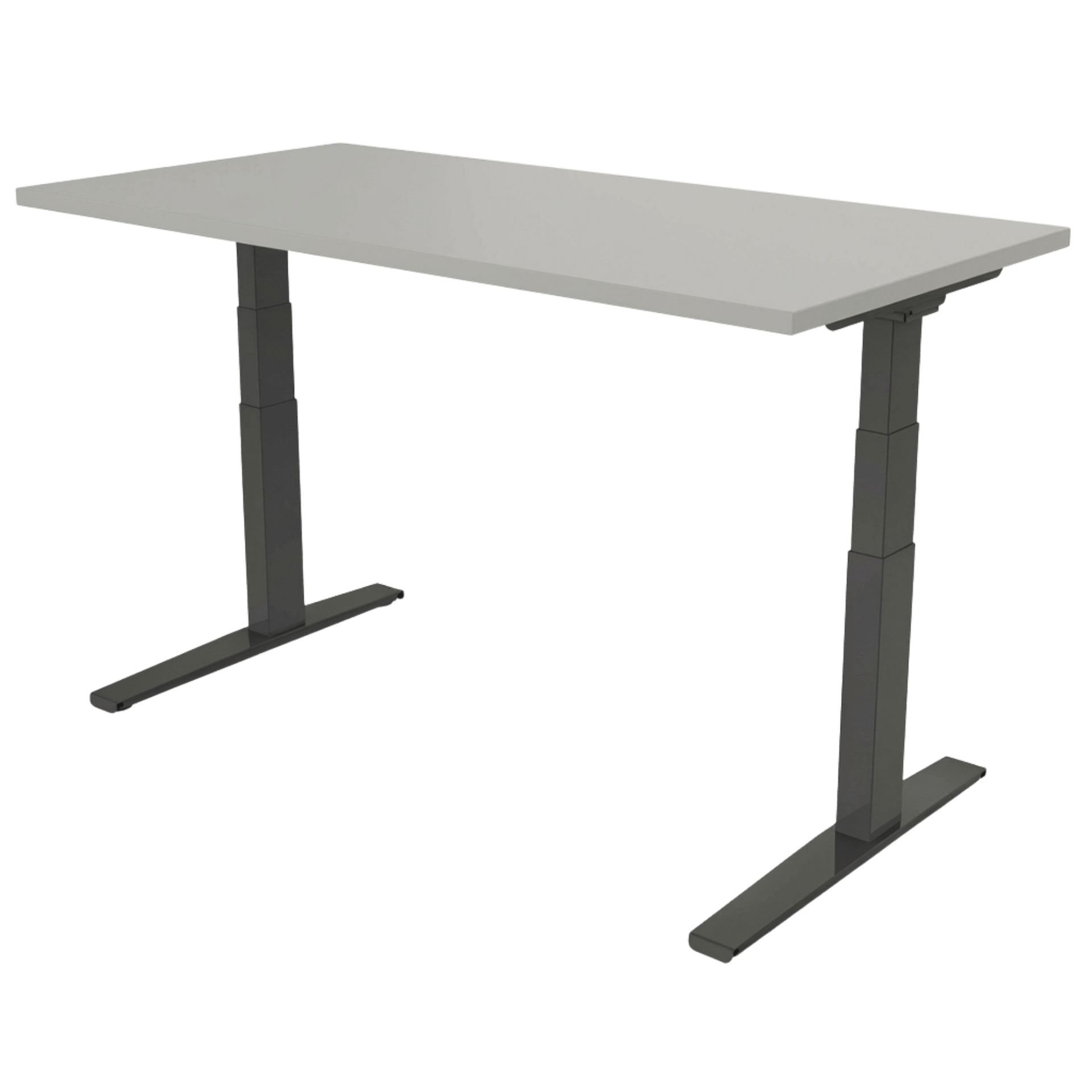

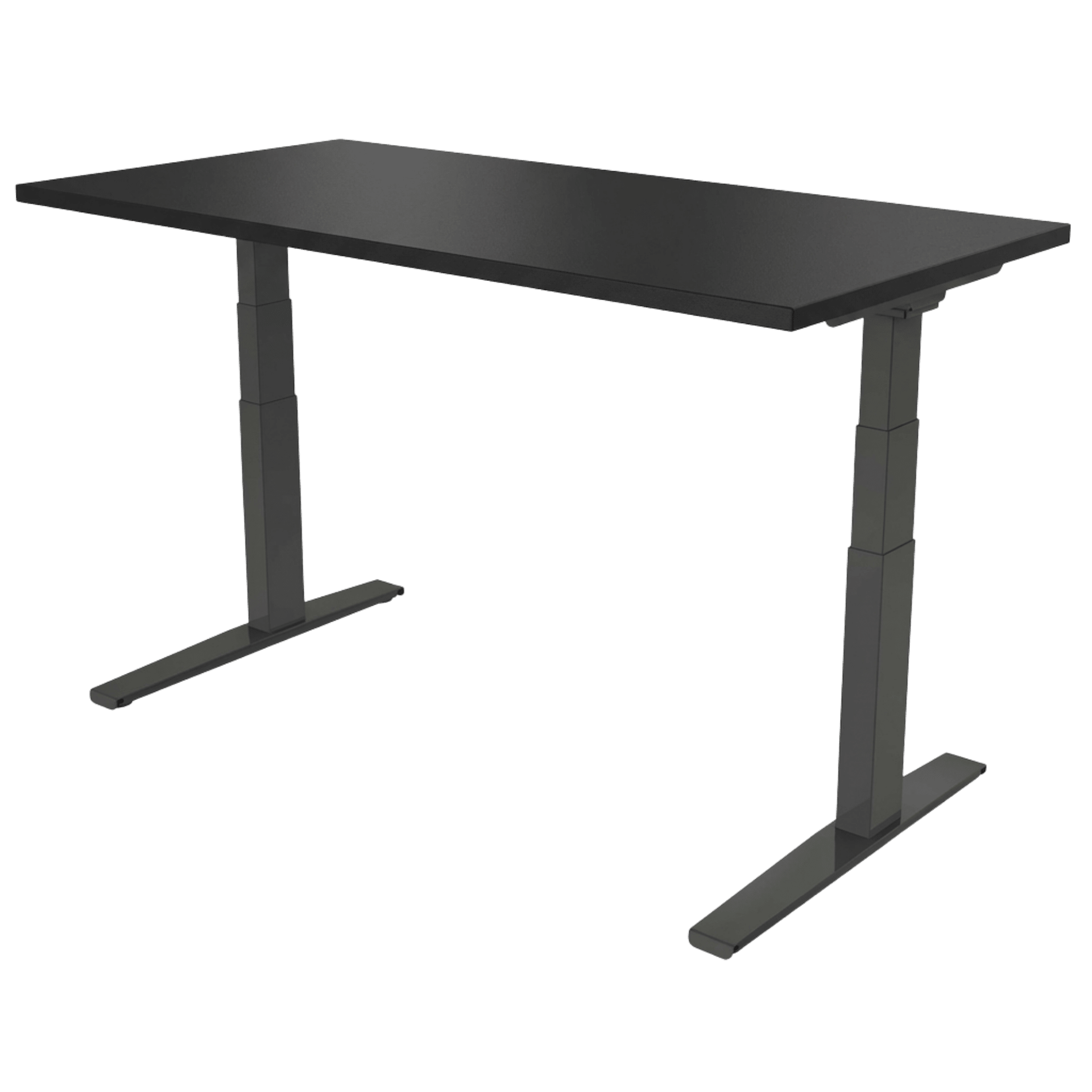

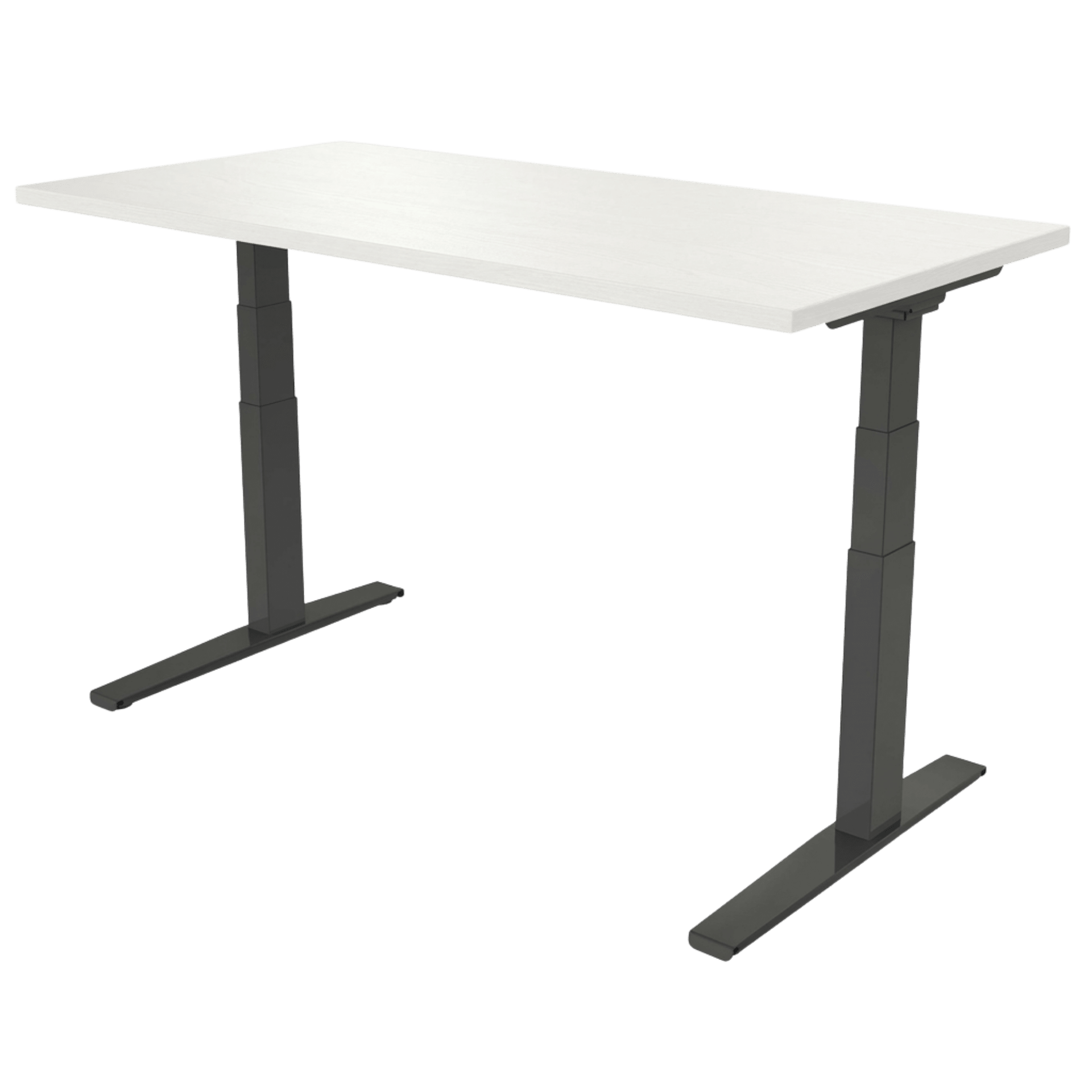

Victory LX Series: Which Base is Right for You?

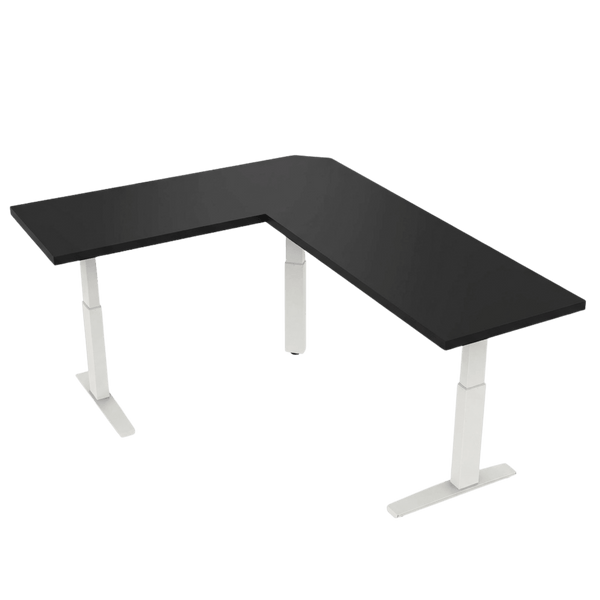

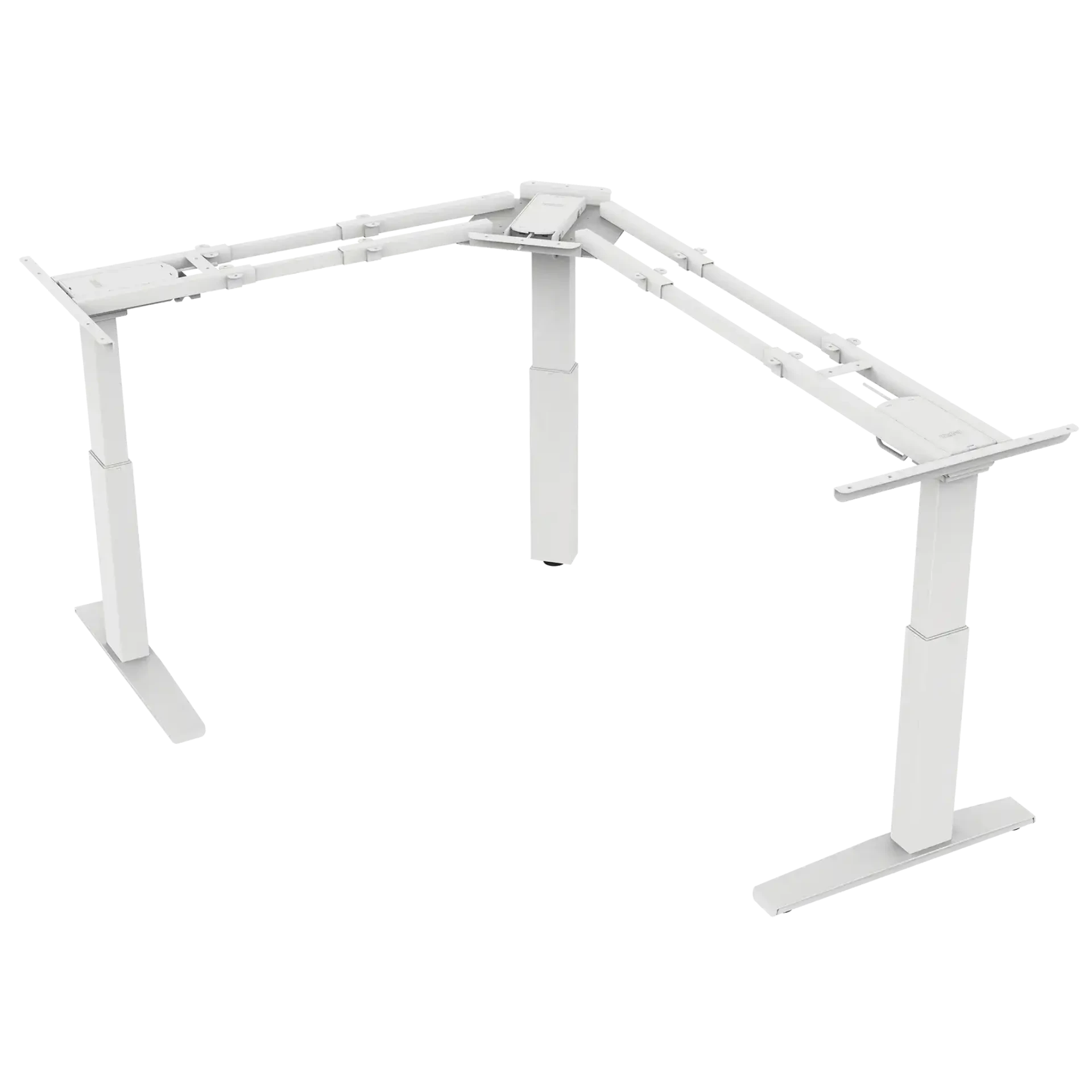

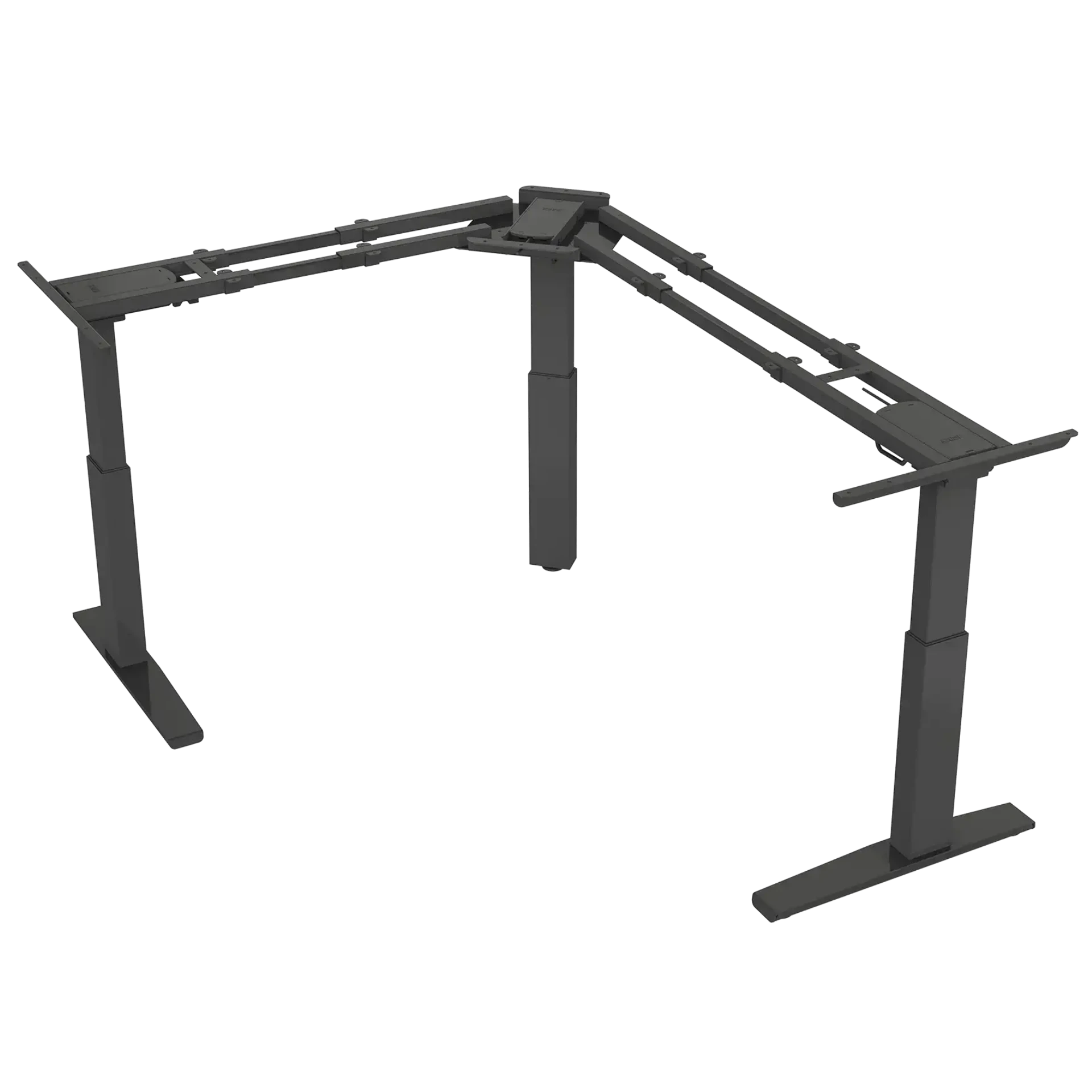

| Feature | 2-Leg Base | 3-Leg Base | 2-Leg Disc Base |
|---|---|---|---|
| Lifting Capacity | 250 lbs. | 360 lbs. | 250 lbs. |
| Height Range (Excluding worksurface) | 21.5" - 47.7" | 21.5" - 47.7" | 21.5" - 47.7" |
| Adjustment Speed | 1.4"/sec | 1.4"/sec | 1.4"/sec |
| Leg Design | Three stage adjustable | Three stage adjustable | Three stage adjustable |
| Foot Style | Standard T-Foot | Standard T-Foot | One 30" T-Foot, One 26" Disc Foot |
| Frame Type | Adjustable width frame | Adjustable width frame | Connect and lock frame |
| Worksurface Compatibility | Various size worksurfaces | Various size worksurfaces | Accommodates P-Top and D-Top worksurfaces |
| Anti-Collision | Gyro sensor | Gyro sensor | Gyro sensor |
The ROI of Movement

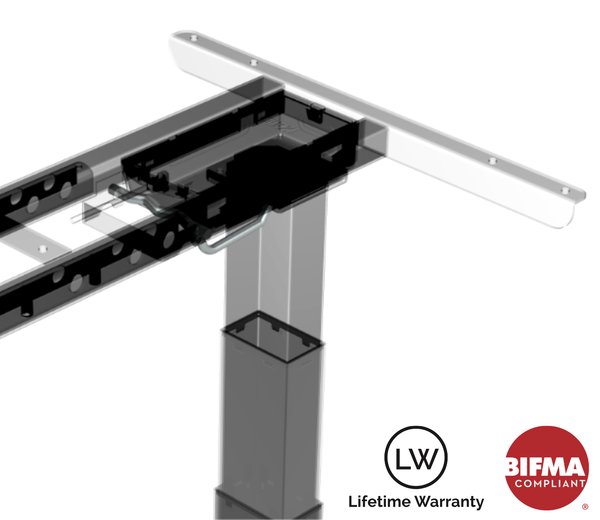

Built to Last
Built to last with cast aluminum parts and designed to be reconfigurable and adaptable for future office design changes.
Workspace Solutions
Work Life Balance
Need Help?
We are here to answer all your questions.
Canadian Council for Indeginous Business
CCIB helps keep Indigenous businesses at the forefront of the Canadian economy, fostering relationships between Indigenous entrepreneurs and Canada’s institutional enterprises to cultivate shared prosperity.
Contact Us
HEIGHT ADJUSTABLE TABLES
A desk or table that allows users to change its height, enabling transitions between sitting and standing positions.
Not mandatory, but highly recommended for ergonomic flexibility and health benefits.
A desk adjusts the entire surface; a riser/platform sits on top of an existing desk and adjusts only the monitor/keyboard height.
Yes. They promote posture changes, reduce back pain, and improve circulation. However, standing all day isn't ideal either—alternating positions is key.
Every 30-45 minutes is recommended. Standing for 15-20 minutes at a time is ideal
Why Use a Height Adjustable Table?
- Reduces Sedentary Time: Alternating between sitting and standing helps combat the negative effects of prolonged sitting, such as back pain and poor posture.
- Improves Circulation: Standing periodically encourages better blood flow and energy levels.
- Supports Ergonomic Practices While Standing or Sitting: Allows users to adjust the desk to their ideal working height, reducing strain on the neck, shoulders, and wrists when seated or when standing.
- Increased Alertness: Standing can help employees feel more engaged and focused, especially during long meetings or training sessions.
- Task Flexibility: Employees can switch positions based on the task—standing for collaborative work, sitting for deep focus.
- Same station can be adjusted/customized and used by individuals of various heights.
How to Select a Height Adjustable Table
- Height Range: Ensure the desk accommodates a wide range of user heights, ideally from sitting to standing (typically 22"-48").
- Ease of Adjustment: Look for electric motors with smooth, quiet operation. Manual crank systems are less ideal for frequent use.
- Programmable Settings: Some models allow users to save preferred heights, which is great for shared workstations.
- Frame Material: Steel frames offer better durability and stability.
- Weight Capacity: Consider the equipment that will be placed on the desk (monitors, training materials, etc.).
- Wobble Factor: Test for lateral stability, especially at full height.
- Surface Material: Laminate, wood veneer, or solid wood—choose based on durability and corporate style.
- Cable Management: Add-on vertical and/or horizontal cable management systems help maintain an able clean, professional look.
- Finish Options: Match with existing office furniture and branding.

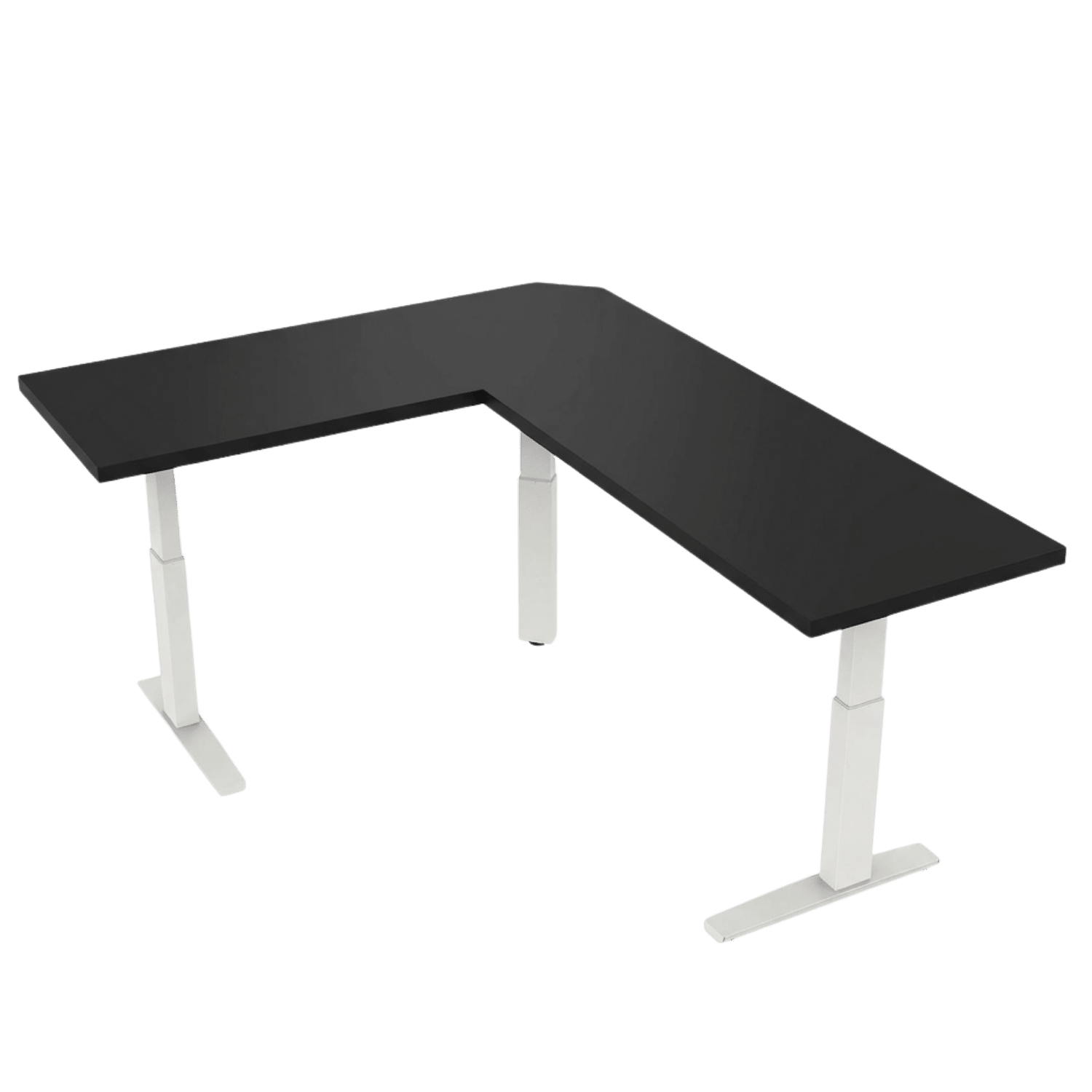

- Size & Shape: Consider L-shaped, rectangular, or modular setups depending on room layout.

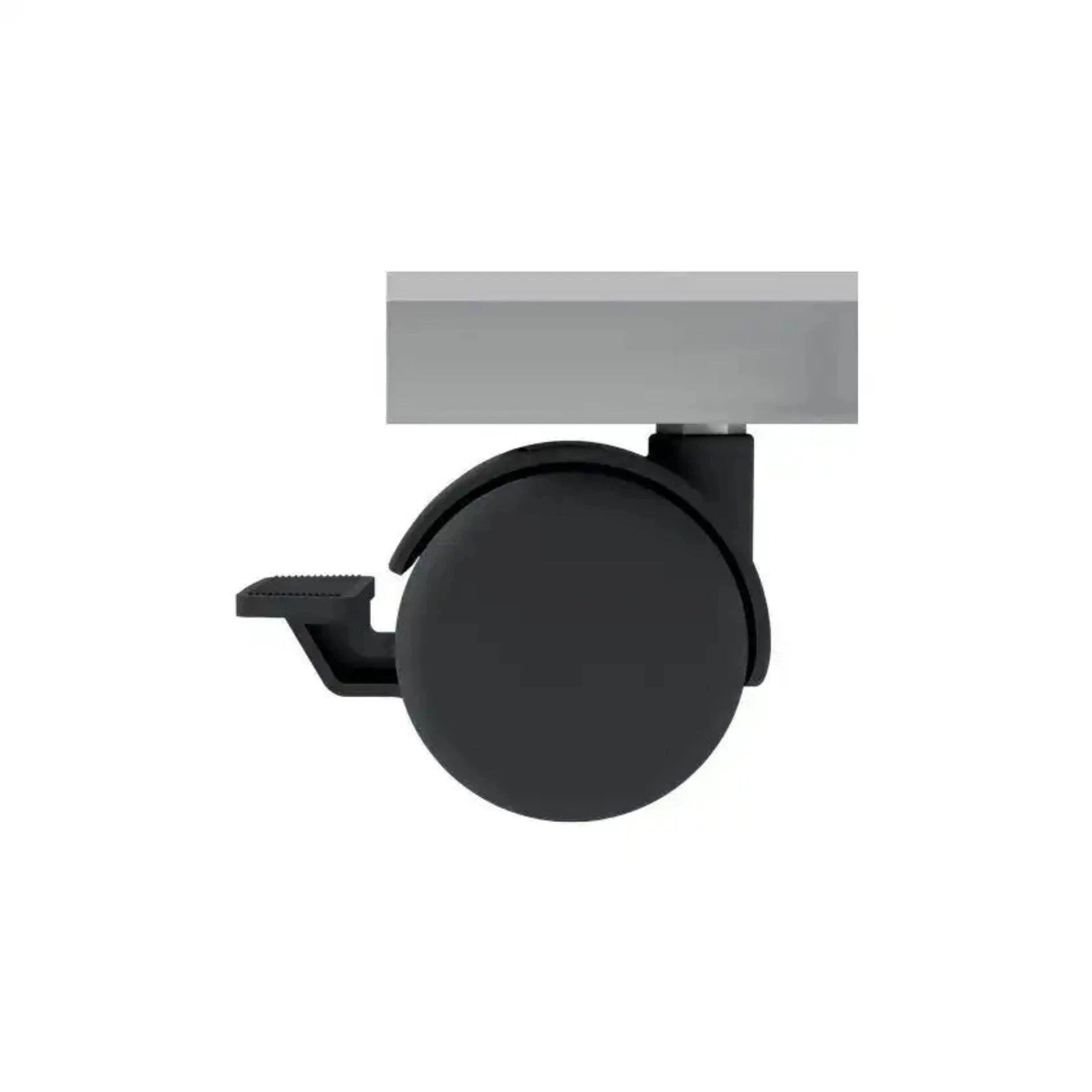

- Mobility: Casters can be helpful for flexible training environments.
- Privacy Panels: Optional for semi-private workstations.
What to consider when selecting a HAT
Should have a 1” clearance on sides and back of worksurface to avoid any obstructions.
To ensure compatibility with height-adjustable environments, base dimensions must be specified as nominal values. This means:
- 1.0” must be subtracted from both the width and depth of the worksurface to allow for movement clearance.
- For example, a worksurface listed as 30.0”D x 60.0”W should actually be 29.0”D x 59.0”W.
- This adjustment prevents the worksurface from catching on edges as it moves up and down.
Fellowes worksurfaces are made to exact dimensions. If nominal sizing is needed, please specify when ordering. TFL worksurfaces are 1.0" thick. HPL worksurfaces are 1.125" thick.
Never take an existing top that is wedged between two surfaces (cantilevered) and offer a base under it. It will more than likely catch an edge and turn into a problem for your end user. Research having the top cut down and re-edge-banded to ensure you have a nominal measurement.
Ensure there is some space around worksurfaces to prevent the table from catching an edge while transitioning from sit-to-stand.
Basic Up/Down Controls
Two-button interface: Simple buttons for raising and lowering the desk.
Touch-sensitive or mechanical: Depending on the model, buttons may be physical or capacitive touch.
Programmable Height Presets
Memory settings: Usually 2 to 4 programmable presets that allow users to save preferred sitting and standing heights.
One-touch recall: Pressing a preset button automatically moves the desk to the saved height.
Digital Display
Height readout: Shows the current desk height in inches or centimeters.
Feedback: May display error codes or system status messages.
Anti-Collision Detection
Safety feature: Automatically stops and reverses movement if the desk encounters an obstruction.
Sensor types: Can be mechanical (resistance-based) or gyroscopic (motion-based).
Soft Start/Stop Motion
Smooth transitions: Prevents abrupt movements for better stability and comfort.
BIFMA certification for height-adjustable tables involves independent testing to verify that the desks meet established standards for safety, durability, stability, and ergonomics. These rigorous tests, accredited by ANSI, ensure that height-adjustable desks can safely withstand thousands of cycles of raising and lowering, support intended weight capacities, and provide a stable, reliable experience for the user over their lifespan.
Business and Institutional Furniture Manufacturers Association
(BIFMA) is an industry organization that develops and accredits standards for office furniture.
ANSI/BIFMA
Standards are comprehensive guidelines for furniture performance and safety.
What is a 2 stage and 3 stage height adjustable table?
- Has two telescoping segments.
- Offers a moderate height range (typically ~27" to 46").
- Often more cost-effective.
- Suitable for users of average height.
- Has three telescoping segments.
- Provides a wider height range (typically ~22" to 48"+).
- More ergonomic for both shorter and taller users.
Stability - While tables with a wider leg segment at the bottom may provide additional stability, any of today's quality height adjustable tables will be secure regardless of leg segmentation.
Aesthetics - Some users may prefer the look of one leg segmentation over the other, however, performance should not be any different.
Stability - While tables with an integrated leg and foot assembly may provide additional stability, any of today's quality height adjustable tables will be secure regardless of the attachment method.
Aesthetics - Some users may prefer the look of one attachment method over the other, however, performance should not be any different.
Design:
The legs form a "T" shape when viewed from the side. The vertical column is centered over a horizontal foot.
Benefits:
Symmetrical support: Offers balanced weight distribution.
Stability: Often more stable, especially for heavier loads or wider desks.
Ideal for dual-leg setups: Common in sit-stand desks.
Considerations:
The centered column may slightly reduce legroom or interfere with under-desk accessories.
Off-Set T-Leg / C-Leg Height Adjustable Table
Remember: configuration must achieve BIFMA certification
Design:
The vertical column is offset toward the rear of the foot, forming a "C" shape.
Often used in modular office furniture systems.
Benefits:
More legroom: The offset design allows for better clearance under the desk. as the column is set back providing greater leg clearance.
Cable management: Easier to route cables and mount accessories.
Better for shared workspaces: Allows more flexibility in layout.
Considerations:
Slightly less stable than T-leg designs, especially if heavily loaded or used with wide surfaces.
